Trendnet 10-Port Industrial Gigabit PoE+ DIN-Rail Switch (TI-PG102)

Trendnet 10-Port Industrial Gigabit PoE+ DIN-Rail Switch (TI-PG102)

• Brand: TRENDnet
• Model: TI-PG102
• 8 x Gigabit PoE+ ports
• 2 x 1000Base TX/SX RJ-45/SFP shared ports
• 240 W PoE power budget
• 20 Gbps switching capacity
• Hardened IP30 rated metal switch
• Includes DIN-rail and wall mounts
• Operating temperature range of -40° – 75°C (-40° – 167°F)
• Redundant power inputs with overload current protection
• Alarm output triggered by power failure
• Power supply sold separately (models: TI-S24048 / 48VDC3000)

• Standards
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at

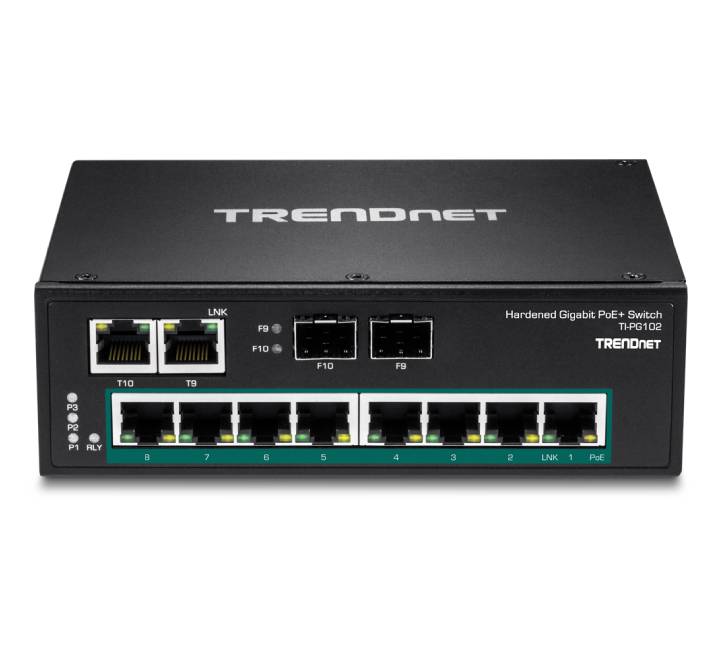

• Device Interface
• 8 x Gigabit PoE+ ports
• 2 x 1000Base-TX RJ-45 ports
• 2 x 1000Base-SX Shared SFP slots
• 6-pin removable terminal block
• LED indicators
• DIN-Rail mount
• Wall mount
• Grounding point
• Data Transfer Rate
• Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit: 2000 Mbps (full duplex)
• Performance
• Data RAM Buffer: 2048 KB
• Switching Fabric: 20 Gbps
• MAC Address Table: 16 K entries
• Forwarding rate: 14.8 Mpps (64-byte packet size)
• Hardened components rated for extreme temperatures
• Redundant power inputs
• Auto-Negotiation
• Auto store and forward architecture
• Automatic address learning and address aging
• ESD 6 KV protection
• Power
• Input: 48 - 56 V DC
• Compatible power supply: TI-S24048 (sold separately)
• Max. consumption: 5.67W (no PoE)
• AC Power
• Input: 100 – 240V AC, 50/60Hz, 2A
• Compatible power adapter: 48VDC3000 (sold separately)
• Output: 48V DC, 3.34A 160W max.
• PoE
• Per port up to 30 W
• PoE budget: 240W@56V DC

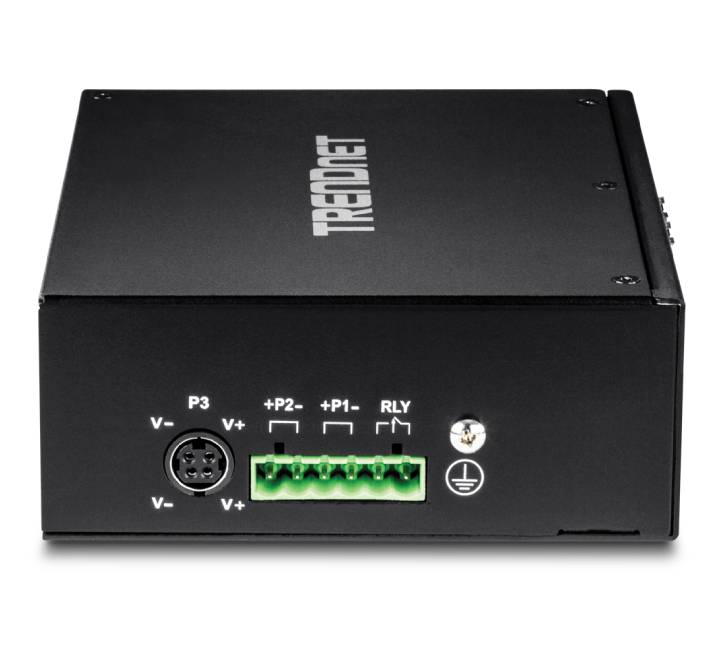

• Terminal Block
• Redundant power inputs, alarm relay contact, 6 pin
• Wire range: 0.34 mm^2 to 2.5 mm^2
• Solid wire (AWG): 12-24 / 14-22
• Stranded wire (AWG): 12-24 / 14-22
• Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
• Wire strip length: 7-8 mm
• Alarm Relay Contact
• Relay outputs with current carrying capacity of 1 A, 24 V DC
• Open circuit mode when two power sources are connected
• Short circuit mode when only one power source is connected
• 510,400 hours
• Housing
• IP30 metal case
• DIN-rail mount
• Wall mount
• Grounding point
• ESD 6 KV protection
• Dimensions
• 155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.)

OVERVIEW

PoE Power

A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.

Fault Tolerance

Features Redundant power inputs with output alarm relay.

Industrial Hardened Design

Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 – 75°C (-40 – 167°F).

Full PoE+ Power Budget

Supplies up to 30 W of PoE / PoE+ power per port with a 240 W PoE power budget

Network Ports

8 Gigabit PoE+ ports plus 2 1000Base TX/SX RJ-45/SFP shared ports

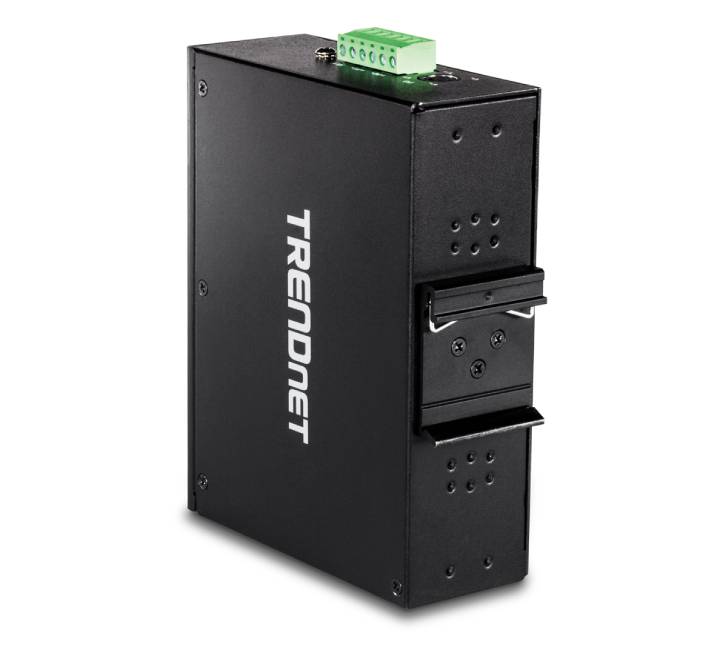

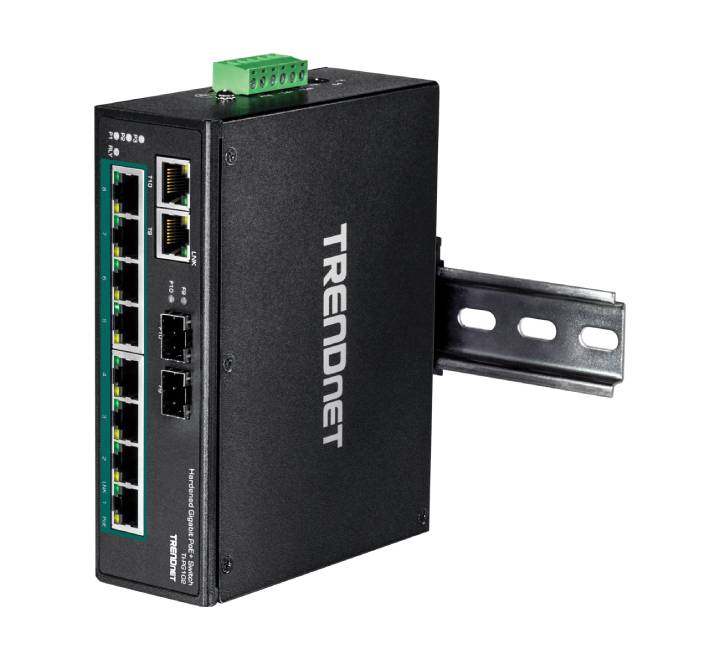

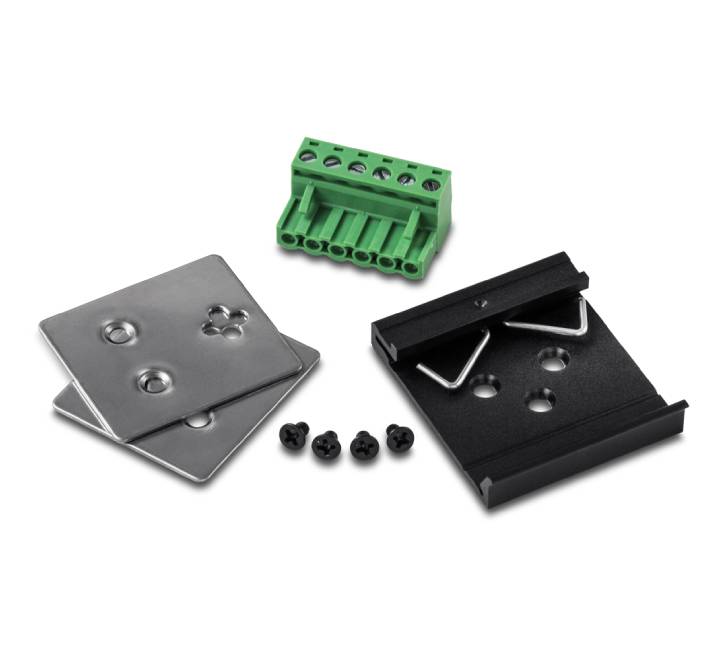

DIN-Rail / Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity

20 Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately models: TI-S24048 / 48VDC3000)

Alarm Relay

Alarm relay triggered by power failure of primary and / or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10 KB), for increased performance

Extreme Temperatures

Industrial switch is rated for an operating temperature range of -40 – 75°C (-40 – 167°F)

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges
