Description

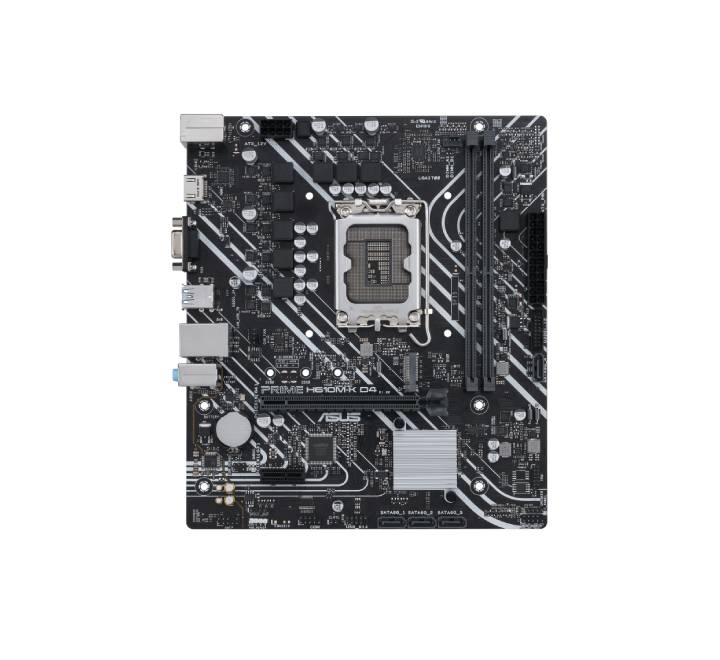

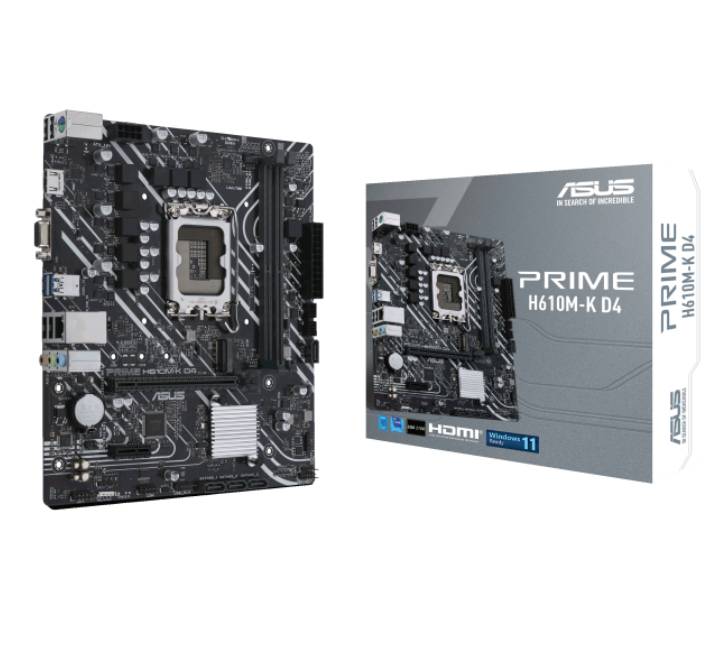

The ASUS Prime H610M-K D4 is expertly engineered to unleash the full potential of 12th, 13th, and 14th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, the Prime H610 series provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Key Features
- Intel® LGA 1700 Socket: Ready for 12th, 13th, and 14th Gen Intel® processors.
- Comprehensive Cooling: Equipped with a PCH heatsink and Fan Xpert to ensure your rig stays cool and stable under intense workloads.
- Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet, and USB 3.2 Gen 1 support.
- PCIe 4.0 Support: Designed specifically for 12th Gen Intel® Core™ CPUs, offering lightning-fast data speeds for the latest GPUs.
- 5X Protection III: Multiple hardware safeguards for all-around system protection, including LANGuard, Overvoltage Protection, and a Stainless-Steel Back I/O.
Technical Specifications
| Category | Specifications |
|---|---|
| CPU Socket | Intel® LGA 1700 (Supports 14th, 13th & 12th Gen) |
| Chipset | Intel® H610 |
| Memory | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2666 MHz |
| Graphics Outputs | 1 x HDMI 2.1 (4K @60Hz), 1 x D-Sub (VGA) |
| Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| Storage | 1 x M.2 slot (Key M, Type 2242/2260/2280), 4 x SATA 6Gb/s |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| Form Factor | mATX Form Factor (9.2 inch x 8.0 inch) |
