Description

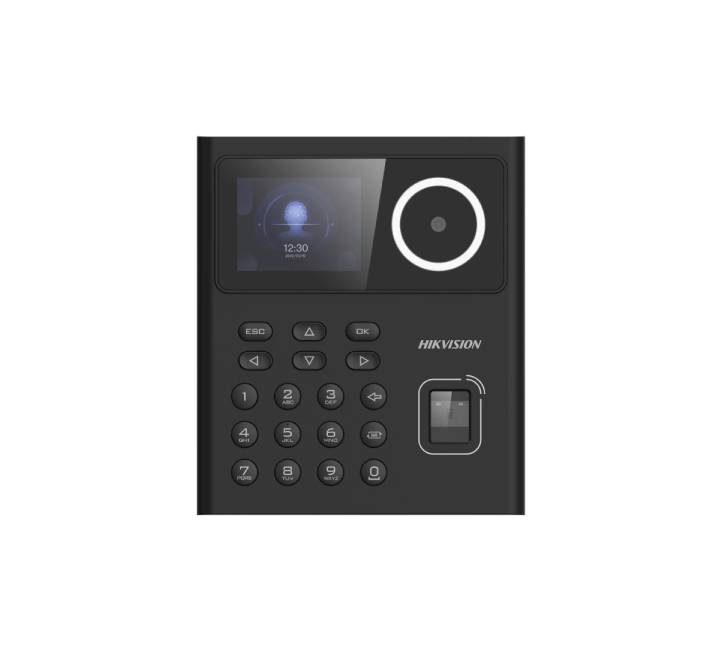

Hikvision DS-K1T320MFWX Face Recognition Terminal
- Brand: Hikvision
- Model: DS-K1T320MFWX
- Face recognition terminal adopts deep learning algorithm, which helps to recognize the face faster with higher accuracy. It
also supports multiple authentication modes: face/card/fingerprint/PIN authentication, etc. It can be applied in multiple
scenarios, such as buildings, enterprises, financial industries, and other important areas. - 2.4-inch LCD screen, 2 MP lens
Multiple authentication methods, including face, fingerprint, card, and PIN, etc.
Supports M1 card - Max. 500 faces, 1,000 cards, 1,000 fingerprints and 100,000 events
Face recognition duration＜0.2 s/User
Supports ISAPI and ISUP 5.0 protocols
Configuration via the web client - Display
Screen size 2.4 inch
Type LCD
Video
- Lens 1
Resolution 2 MP (video stream: 720P)
FOV HFOV = 43°; VFOV = 25° - Network
Wired network Support
Wi-Fi Support, 2.4 G, 802.11b/g/n
- Interface
Network interface 1 RJ-45, 10/100 M self-adaptive
Lock control 1
Exit button 1
Door contact input 1
TAMPER 1
USB 1
Authentication
Card type M1 card - General
Built-in access controller Yes
Power supply 12 VDC
Power consumption ≤ 6 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 0 to 90% (No condensing)
